RoXdon VU-VINTAGE Master VU Meter

BRITISH HANDBUILT STUDIO GEAR

The RoXdon VU-VINTAGE Master VU meter is a 2-channel (left & right) Professional Analog VU Meter featuring accurate, high quality, large vintage style VU meters housed in a aluminium diecast box. The VU-VINTAGE is intended to be used in a studio recording setup for measurement of recording output levels.

The VU-VINTAGE is ideal for measuring final Mixdown or Mastering levels. Compared to a LED meter, a VU has a slower attack time which allows the faster transients to get by before it registers the signal and gives a reading. Because of these characteristics a VU meter is fairly accurate and preferable when measuring overall level of your program material.

The VU-VINTAGE meters are calibrated for the Pro Audio level standard, 0VU = +4dBu (1.228V into a 600 ohm load) and are driven by individual VU buffer driver circuits.

The unit is powered by an external International Power Supply which includes UK, EU, USA & Australian adapters. A convenient on-off power switch is located on the front panel.

FEATURES

*  Professional Master VU Meter

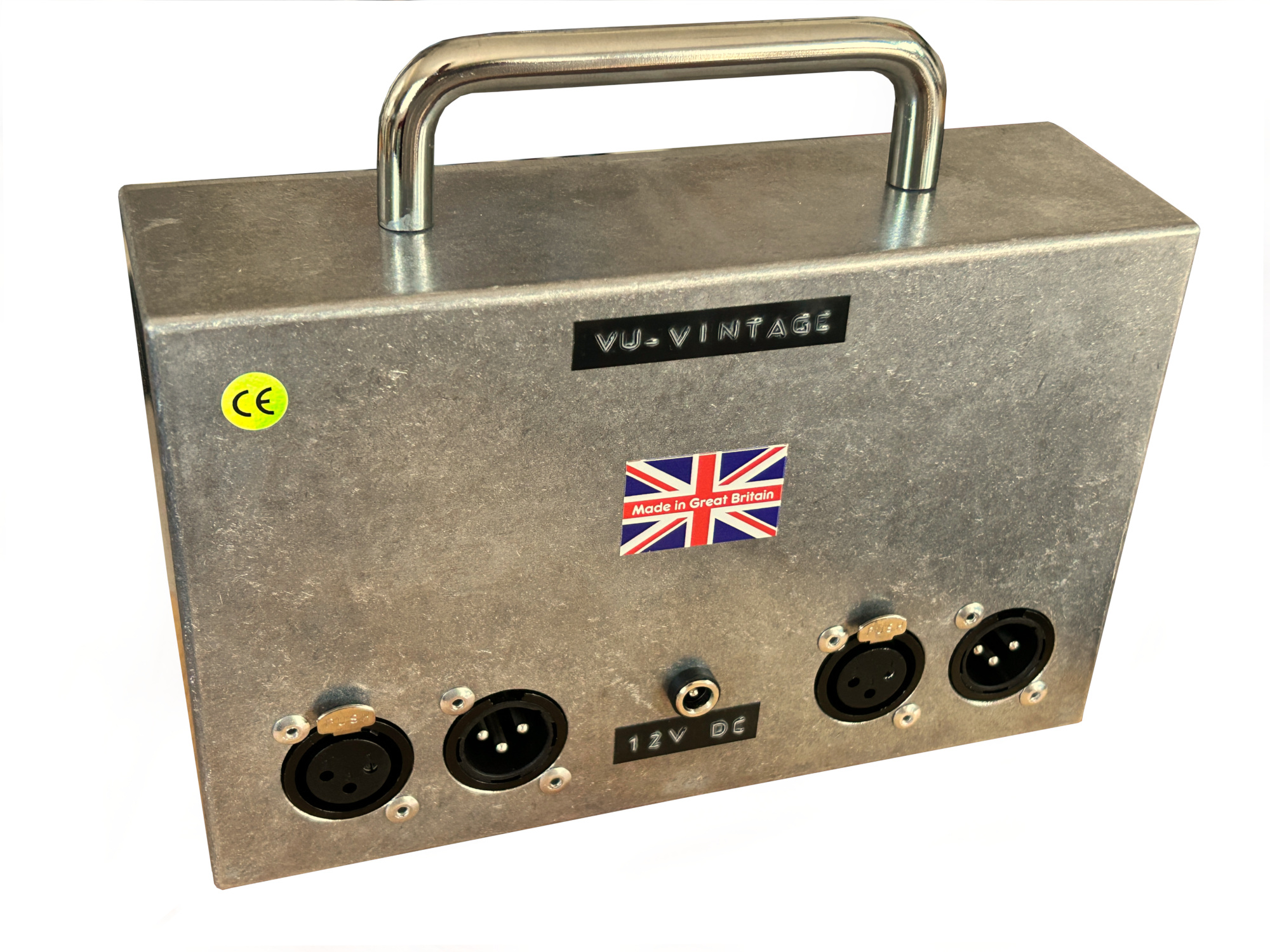

*  Balanced XLR input connections
*  XLR Thru connections
*  High Quality Large Vintage Style Illuminated meters
*  VU buffer circuit for pure unaffected audio
*  Pro Audio level, meter calibration
*  External International Power Supply (100-240VAC)
*  Retro style On/Off switch
*  Base fitted with neoprene pad
*  Box dimensions: 188 x 120 x 57mm

VU METERS: THE BEST KEPT SECRET OF THE PROS
