RoXdon VU-REFERENCE Master VU Meter

BRITISH HANDBUILT STUDIO GEAR

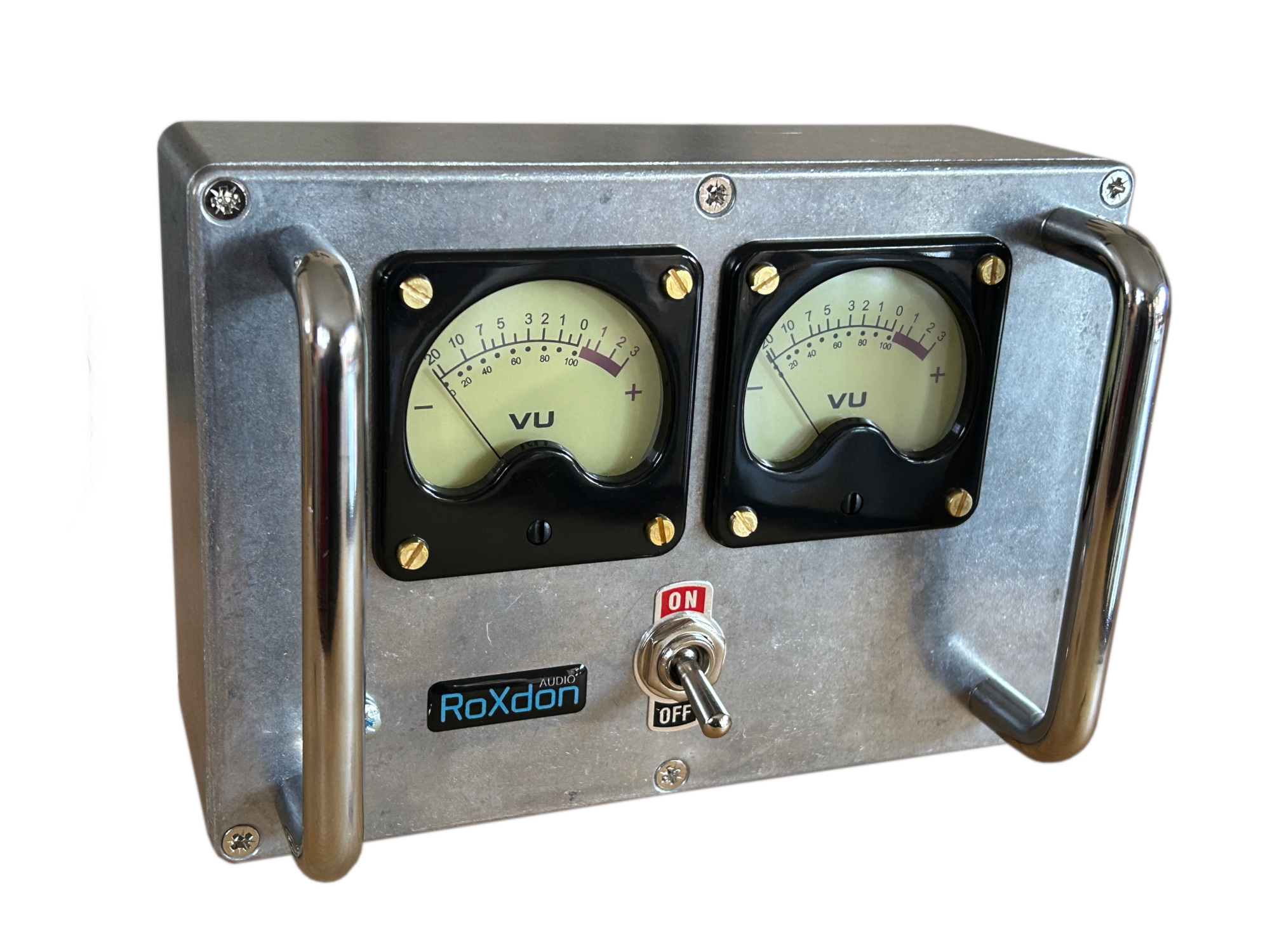

The RoXdon VU-REFERENCE Master VU meter is a 2-channel (left & right) Professional Analog VU Meter featuring accurate, high quality vintage style VU meters housed in a aluminium diecast box. The VU-REFERENCE is intended to be used in a studio recording setup for measurement of recording output levels.

The VU-REFERENCE is ideal for measuring final Mixdown or Mastering levels. Compared to a LED meter, a VU has a slower attack time which allows the faster transients to get by before it registers the signal and gives a reading. Because of these characteristics a VU meter is fairly accurate and preferable when measuring overall level of your program material.

The VU-REFERENCE meters are calibrated for the Pro Audio level standard, 0VU = +4dBu (1.228V into a 600 ohm load) and are driven by a VU buffer driver circuit so the connected audio remains unaffected.

The unit is powered by an external International Power Supply therefore preventing interaction with the meters and audio circuit. The Power Supply includes UK, EU, USA & Australian adapters. A convenient on-off power switch is located on the front panel.

FEATURES

*  Professional Master VU Meter
*  Balanced XLR input connections
*  XLR Thru connections
*  High Quality Vintage Style Illuminated meters
*  VU buffer circuit for pure unaffected audio
*  Pro Audio level, meter calibration
*  External International Power Supply (100-240VAC)
*  Retro style On/Off switch
*  Base fitted with neoprene pad

VU METERS: THE BEST KEPT SECRET OF THE PROS
