RoXdon ISOLATOR 2-Channel Line Level Transformer Isolator

 RoXdon ISOLATOR 2-Channel Line Level Transformer Isolator

BRITISH HANDBUILT SOUND EQUIPMENT

The ISOLATOR is a high performance two channel balanced line level isolator that provides transformer based isolation between various pieces of pro audio equipment to eliminate hum and buzz caused by ground loops.

The RoXdon ISOLATOR is a balanced 2-channel, line-level isolator that has been specifically developed for professional touring systems as a means to eliminate hum and buzz caused by ground loops when interfacing various equipment such as two consoles, remote towers and drive racks. It is equally at home in recording and broadcast studios.

Central to the ISOLATOR is the use of the Custom Wound RoXdon Audio Transformers, specially developed for this application. These transformers assure the very best signal transfer without distortion caused by saturation or phase shift. The transformers can handle up to +28dB of audio and are transparent so will not color the audio. All units are hand wired with no internal circuit board. Also included is an earth lift switch which breaks the pin 1 connection between the input and output XLR's if required.
All connections are balanced XLR.

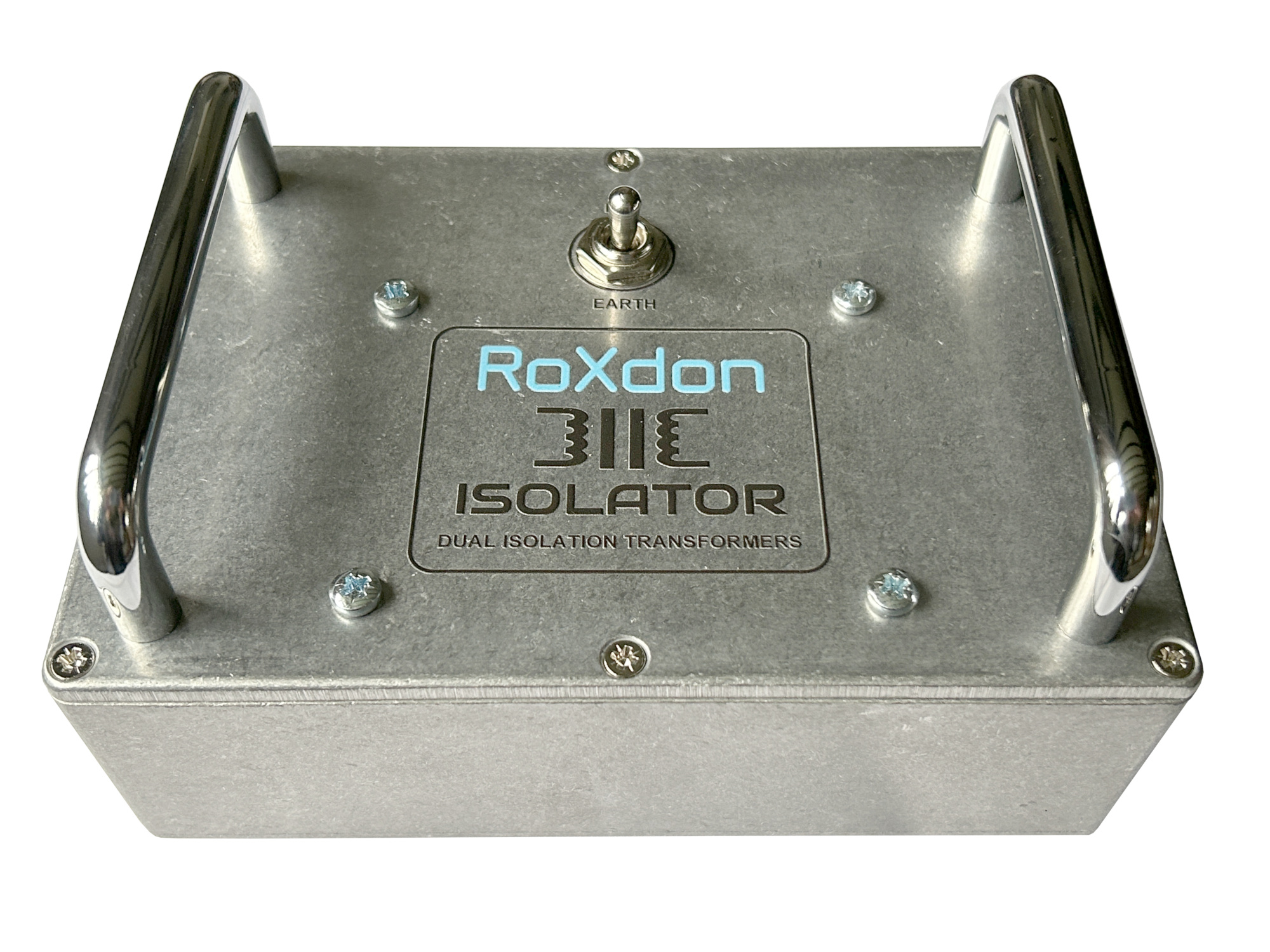

The RoXdon ISOLATOR features a rugged Diecast enclosure for maximum durability and to stand up to the rigors of pro-touring.

FEATURES

*  Passive Transformer Unit
*  2 x RoXdon custom made high level line transformers
*  600:600 ohm Transformer Impedance
*  Balanced XLR Line Input & Output connections
*  Earth Lift switch
*  Diecast Metal Case (17cm x 12cm x 5.5cm)
*  Base fitted with 4 rubber feet
*  Weight: 1.5Kg
*  Hand built in Great Britain

BRITISH HAND BUILT STUDIO EQUIPMENT
