Rolls MX28 Stereo Mini-Mix 6
(Hand built in the USA)


Rolls MX28 Stereo Mini-Mix 6
(Hand built in the USA)

Introducing the MX28, a cutting-edge three-channel true stereo line mixer designed to deliver unparalleled audio blending capabilities. With its innovative features, this mixer takes your audio experience to new heights.

Equipped with individual 1/4" inputs for both right and left sides on each channel, the MX28 ensures seamless connectivity for all your audio sources. The outputs are no exception, providing individual right and left 1/4" jacks for precise audio distribution.

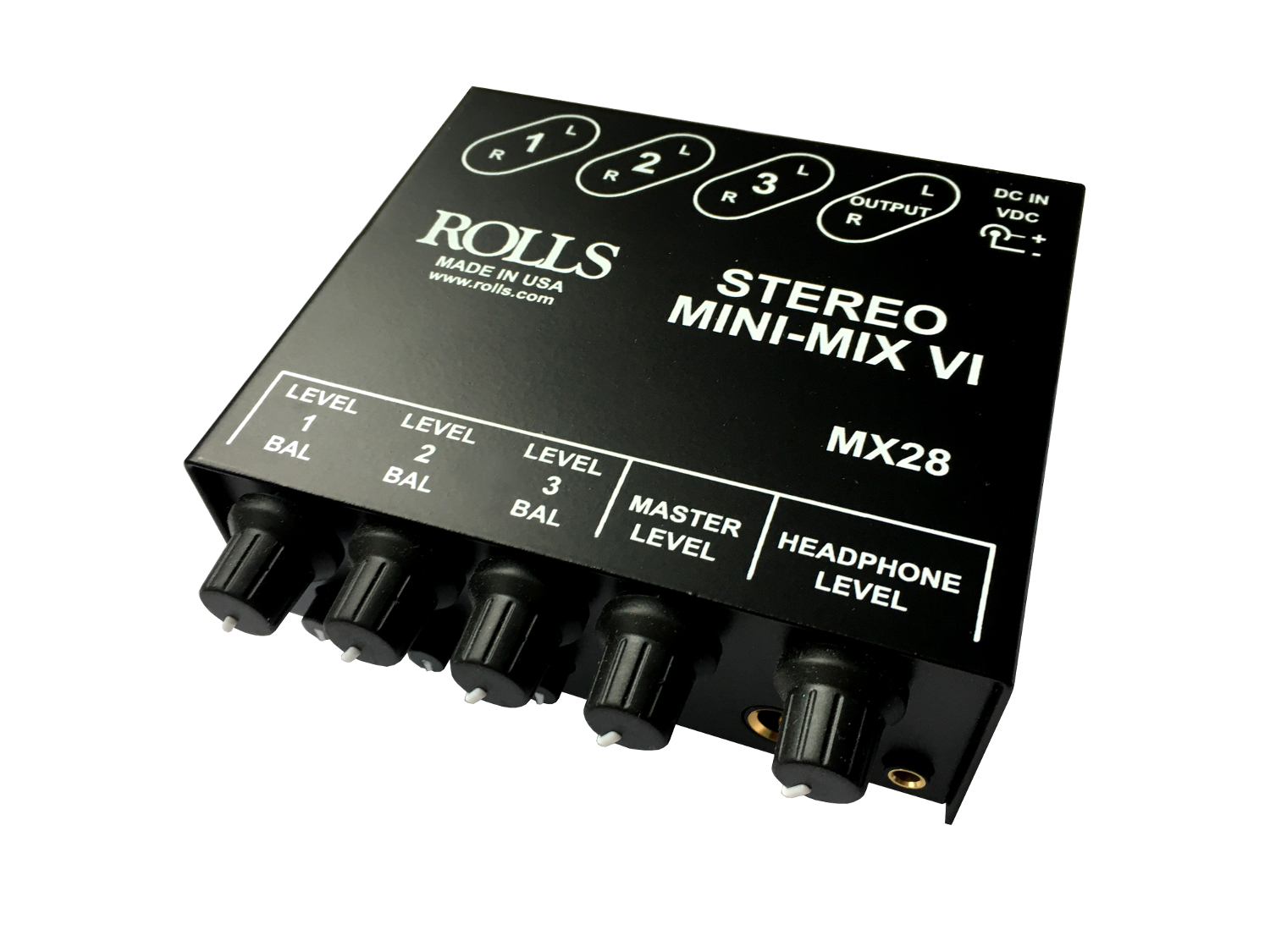

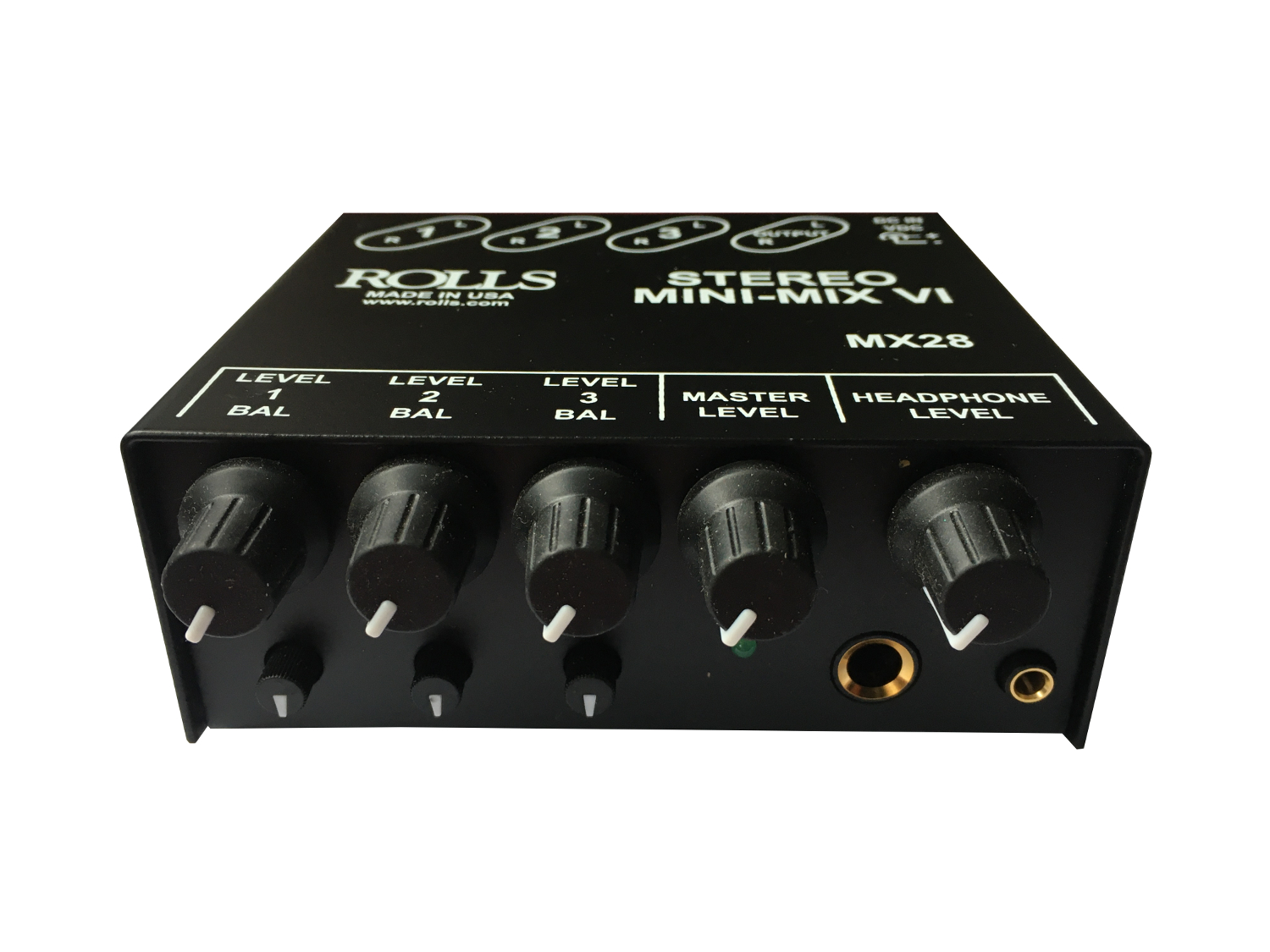

Take full control over your sound with ease using the level and pan (balance) controls available on each channel. Achieve the perfect mix by customizing the audio levels to suit your preferences and needs.

The MX28 doesn′t stop there—it comes with a Master Level control to manage the output volume, granting you the freedom to adjust the overall sound to perfection. Additionally, with a dedicated Headphone Level control, you can easily fine-tune the levels for the two headphone outputs, making it ideal for personal monitoring or collaborative sessions.

With the MX28, experience the pinnacle of audio mixing technology, bringing you professional-grade results and an immersive sound experience like never before. Elevate your audio game with this exceptional stereo line mixer.


* Input Impedance: 10K Ohms
* Output Impedance: 100 Ohms
* Max Gain: +27 dBV
* Max Input Level: +30 dBV
* Max Output Level: +13 dB
* Frequency Response: 20Hz - 20kHz +/- 1 dBV
* THD + Noise: <.005%
* Power: 12 VDC 150 mA adapter (center negative)
* Size: 4.25" x 1.75" x 4.5" (WxHxD)
* Weight: 1.2 lbs. (.49 Kg)
* 3: Stereo 1/4" Stereo Inputs
* True stereo 1/4" outputs, unbalanced
* Two Headphone Outs (1/4" and 3.5mm)
* Pan control for each channel
